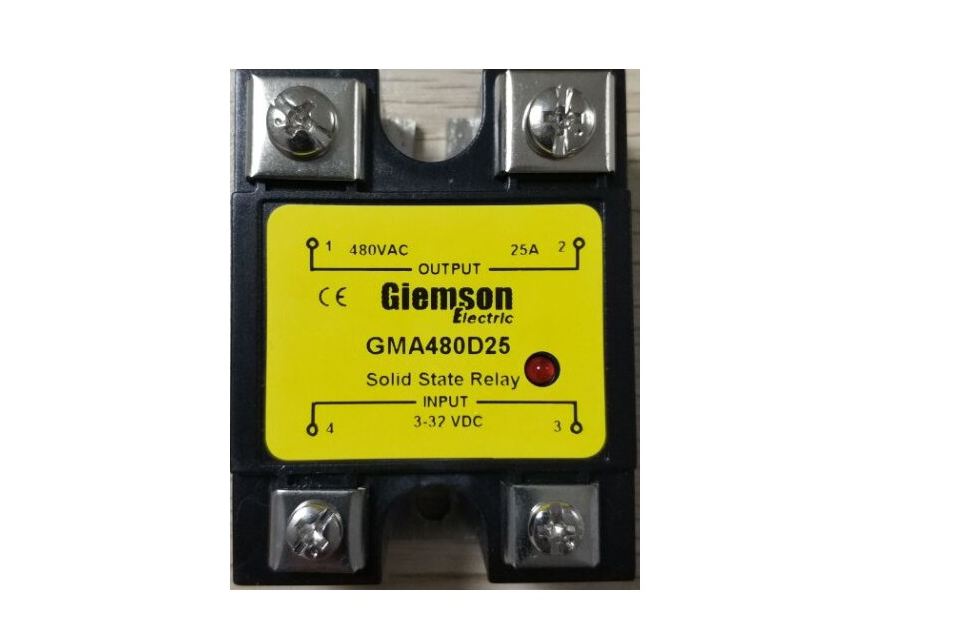

景頌 GIEMSON GMA單相交流固態繼電器

 提示：點擊圖片可以放大
產品特性：
  • 3-32 VDC 寬控制電壓輸入,內帶限流電路,紅色LED燈指示輸入信號狀況(3-32 VDC Wide Input DC Voltage, with Current Limiter, Red LED Show the Input Signal Status);
  • 負載電壓: 24-240VAC, 24-480VAC, 48-660VAC;負載電流:10-120 A(Load Voltage: 24-240VAC, 24-480VAC, 48-660VAC; Load Current:10-120 A );
  • 過零輸出型-阻性負載應用;瞬時輸出型-感性負載應用(Zero Across Output Type Specially Designed for Resitive Loads Random Output Type Specially Designed for Inductive Loads);
  • 輸入與輸出采用光隔離,輸入/輸出/底板之間2000VAC隔離(Optical Isolation between Input and Output; 2000 VAC isolation among Input/Output/Base);
產品選型：


常用型號：

產品編號
Part Number 		控制電壓
Control Input 		負載電壓
Line Voltage 		負載電流
Line Current 		輸出類型
Output Type
GMA240D10 3-32 VDC 24-240 VAC 10 A Zero-On
GMA240D10R 3-32 VDC 24-240 VAC 10 A Random-On
GMA240D20 3-32 VDC 24-240 VAC 20 A Zero-On
GMA240D20R 3-32 VDC 24-240 VAC 20 A Random-On
GMA240D25 3-32 VDC 24-240 VAC 25 A Zero-On
GMA240D25R 3-32 VDC 24-240 VAC 25 A Random-On
GMA240D40 3-32 VDC 24-240 VAC 40 A Zero-On
GMA240D40R 3-32 VDC 24-240 VAC 40 A Random-On
GMA240D50 3-32 VDC 24-240 VAC 50 A Zero-On
GMA240D50R 3-32 VDC 24-240 VAC 50 A Random-On
GMA240D60 3-32 VDC 24-240 VAC 60 A Zero-On
GMA240D60R 3-32 VDC 24-240 VAC 60 A Random-On
GMA240D70 3-32 VDC 24-240 VAC 70 A Zero-On
GMA240D70R 3-32 VDC 24-240 VAC 70 A Random-On
GMA240D80 3-32 VDC 24-240 VAC 80 A Zero-On
GMA240D80R 3-32 VDC 24-240 VAC 80 A Random-On
GMA240D90 3-32 VDC 24-240 VAC 90 A Zero-On
GMA240D90R 3-32 VDC 24-240 VAC 90 A Random-On
GMA240D100 3-32 VDC 24-240 VAC 100 A Zero-On
GMA240D100R 3-32 VDC 24-240 VAC 100 A Random-On
GMA240D120 3-32 VDC 24-240 VAC 120 A Zero-On
GMA240D120R 3-32 VDC 24-240 VAC 120 A Random-On
GMA480D10 3-32 VDC 24-480 VAC 10 A Zero-On
GMA480D10R 3-32 VDC 24-480 VAC 10 A Random-On
GMA480D20 3-32 VDC 24-480 VAC 20 A Zero-On
GMA480D20R 3-32 VDC 24-480 VAC 20 A Random-On
GMA480D25 3-32 VDC 24-480 VAC 25 A Zero-On
GMA480D25R 3-32 VDC 24-480 VAC 25 A Random-On
GMA480D40 3-32 VDC 24-480 VAC 40 A Zero-On
GMA480D40R 3-32 VDC 24-480 VAC 40 A Random-On
GMA480D50 3-32 VDC 24-480 VAC 50 A Zero-On
GMA480D50R 3-32 VDC 24-480 VAC 50 A Random-On
GMA480D60 3-32 VDC 24-480 VAC 60 A Zero-On
GMA480D60R 3-32 VDC 24-480 VAC 60 A Random-On
GMA480D70 3-32 VDC 24-480 VAC 70 A Zero-On
GMA480D70R 3-32 VDC 24-480 VAC 70 A Random-On
GMA480D80 3-32 VDC 24-480 VAC 80 A Zero-On
GMA480D80R 3-32 VDC 24-480 VAC 80 A Random-On
GMA480D90 3-32 VDC 24-480 VAC 90 A Zero-On
GMA480D90R 3-32 VDC 24-480 VAC 90 A Random-On
GMA480D100 3-32 VDC 24-480 VAC 100 A Zero-On
GMA480D100R 3-32 VDC 24-480 VAC 100 A Random-On
GMA480D120 3-32 VDC 24-480 VAC 120 A Zero-On
GMA480D120R 3-32 VDC 24-480 VAC 120 A Random-On
GMA660D10 3-32 VDC 48-660 VAC 10 A Zero-On
GMA660D10R 3-32 VDC 48-660 VAC 10 A Random-On
GMA660D20 3-32 VDC 48-660 VAC 20 A Zero-On
GMA660D20R 3-32 VDC 48-660 VAC 20 A Random-On
GMA660D25 3-32 VDC 48-660 VAC 25 A Zero-On
GMA660D25R 3-32 VDC 48-660 VAC 25 A Random-On
GMA660D40 3-32 VDC 48-660 VAC 40 A Zero-On
GMA660D40R 3-32 VDC 48-660 VAC 40 A Random-On
GMA660D50 3-32 VDC 48-660 VAC 50 A Zero-On
GMA660D50R 3-32 VDC 48-660 VAC 50 A Random-On
GMA660D60 3-32 VDC 48-660 VAC 60 A Zero-On
GMA660D60R 3-32 VDC 48-660 VAC 60 A Random-On
GMA660D70 3-32 VDC 48-660 VAC 70 A Zero-On
GMA660D70R 3-32 VDC 48-660 VAC 70 A Random-On
GMA660D80 3-32 VDC 48-660 VAC 80 A Zero-On
GMA660D80R 3-32 VDC 48-660 VAC 80 A Random-On
GMA660D90 3-32 VDC 48-660 VAC 90 A Zero-On
GMA660D90R 3-32 VDC 48-660 VAC 90 A Random-On
GMA660D100 3-32 VDC 48-660 VAC 100 A Zero-On
GMA660D100R 3-32 VDC 48-660 VAC 100 A Random-On
GMA660D120 3-32 VDC 48-660 VAC 120 A Zero-On
GMA660D120R 3-32 VDC 48-660 VAC 120 A Random-On
. ;
